Gateron Low Profile Switch 2.0

MKZealots

Gateron Low Profile Switch 2.0

Sale price$3.80
Option:Low Profile Blue 2.0
Quantity:

All parts sold in packs of 10, Qty 1 = 10 switches.

Low profile Gateron Mechanical switch keyboard is not compatible with any conventional mx style mechanical switch.

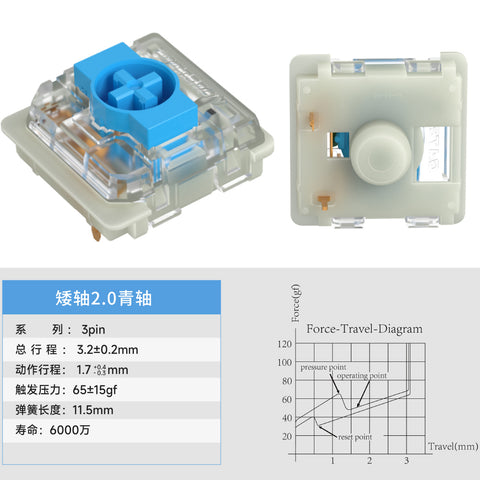

Product Name: Low-Profile Blue 2.0

Type: Clicky

Travel Distance:

Pre-travel: 1.7 ± 0.4mm

Total travel: 3.2 + 0.2mm

Force:

Operating force: 65 ± 15gf

End force: 70 ± 5gf

Mounting Pins: 3-pin

Materials:

Stem: POM

Top Housing: PC

Bottom Housing: Nylon PA66

Spring: 13.5mm two-stage spring

Factory Lube: Yes

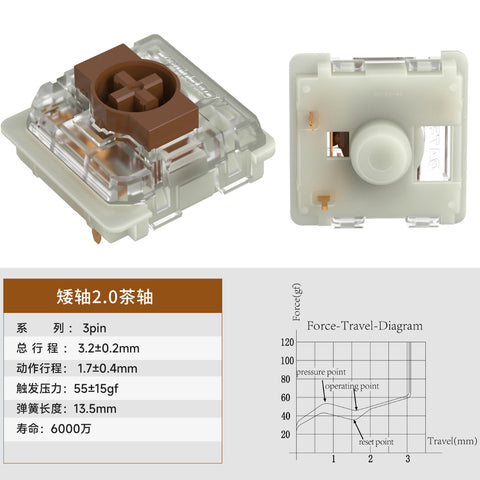

Product Name: Low-Profile Brown 2.0

Type: Tactile

Travel Distance:

Pre-travel: 1.7 ± 0.4mm

Total travel: 3.2 + 0.2mm

Force:

Operating force: 55 ± 15gf

End force: 60 ± 5gf

Mounting Pins: 3-pin

Materials:

Stem: POM

Top Housing: PC

Bottom Housing: Nylon PA66

Spring: 13.5mm two-stage spring

Factory Lube: Yes

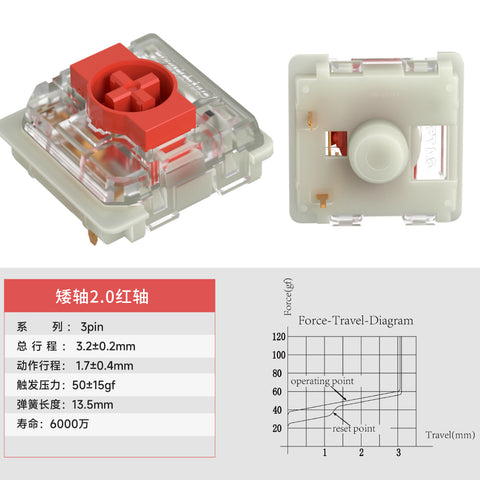

Product Name: Low-Profile Red 2.0-Specs

Type: Linear

Travel Distance:

Pre-travel: 1.7 ± 0.4mm

Total travel: 3.2 + 0.2mm

Force:

Operating force: 50 ± 15gf

End force: 60 ± 5gf

Mounting Pins: 3-pin

Materials:

Stem: POM

Top Housing: PC

Bottom Housing: Nylon PA66

Spring: 13.5mm two-stage spring

Factory Lube: Yes
