KAILH
Kailh Hot-swappable PCB Socket Sip socket Hot Plug CPG151101S11
Quantity:
Model：CPG151101S11
Product Application:

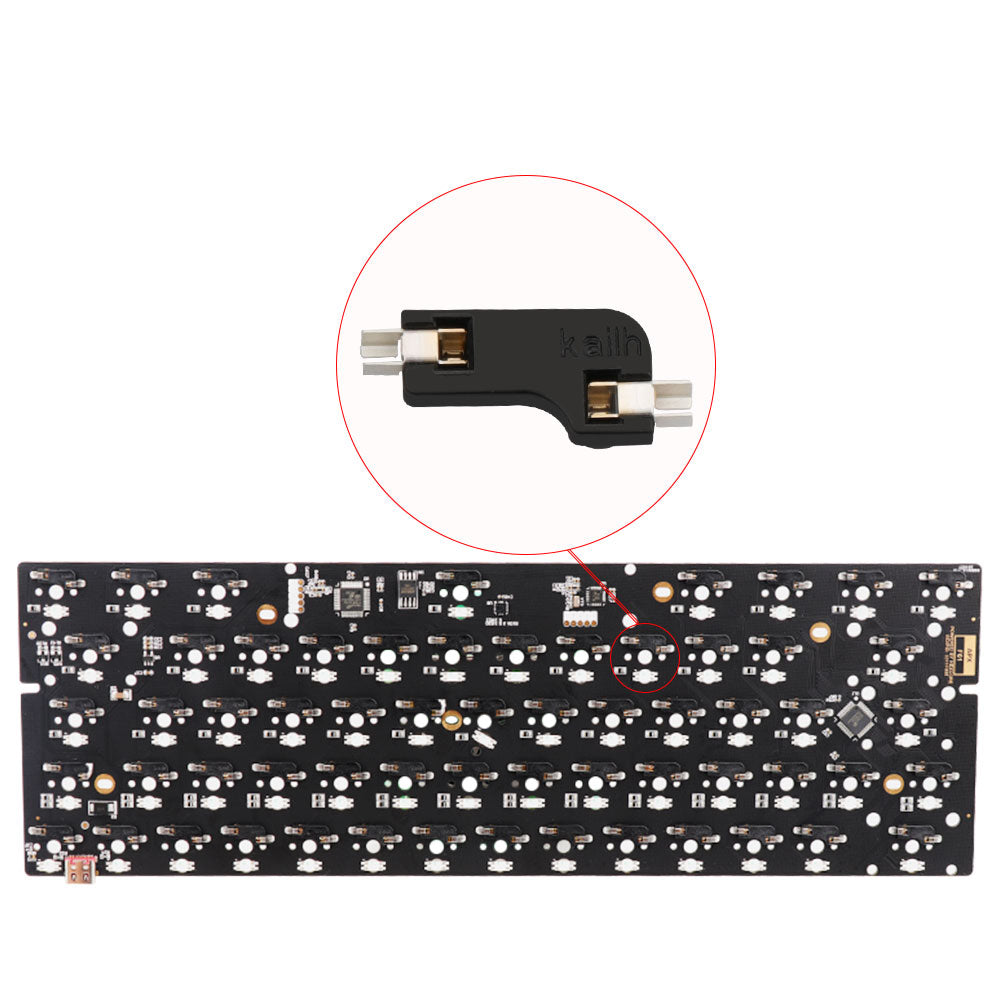

Mainly applied on computer keyboards,cash registers equipment and Man-Machine
interface.
Mainly applied on computer keyboards,cash registers equipment and Man-Machine
interface.
Quantity 1 = 100 sockets
KEY SPECIFICATIONS/SPECIAL FEATURES:
Rating voltage: 12V AC/DC (maximum) and 2V AC (minimum)
Rating current: 10mA AC/DC (maximum) and 10μA DC (minimum)
Contact resistance: 200mΩ (maximum)
Insulation resistance: 100mΩ (minimum) (100V DC)
Withstand Voltage: AC100V(50-60Hz)
Motion Force: 3.0kgf max
Operating Life: 100 Cycles (can replace switches 100 times)
If you need more than 1000 pcs,pls contact us to negociate price.
Rating current: 10mA AC/DC (maximum) and 10μA DC (minimum)
Contact resistance: 200mΩ (maximum)
Insulation resistance: 100mΩ (minimum) (100V DC)
Withstand Voltage: AC100V(50-60Hz)
Motion Force: 3.0kgf max
Operating Life: 100 Cycles (can replace switches 100 times)
If you need more than 1000 pcs,pls contact us to negociate price.
