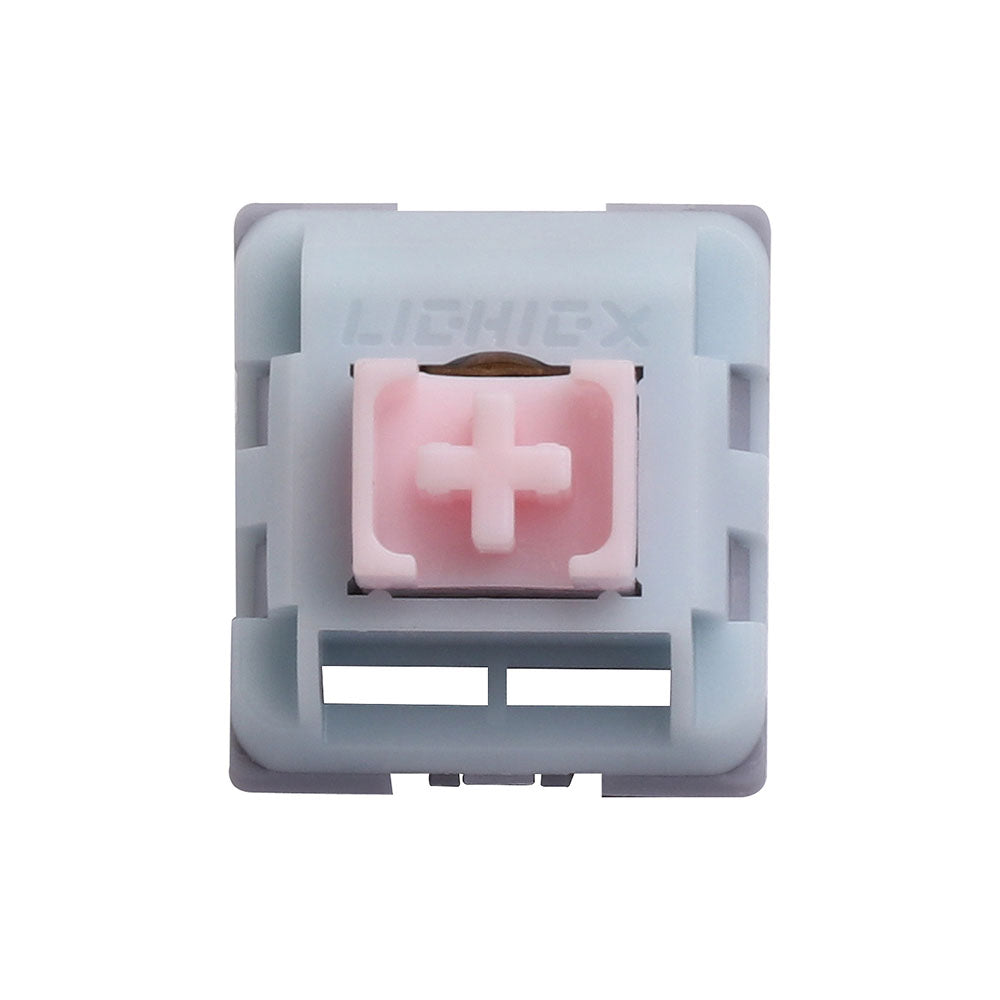

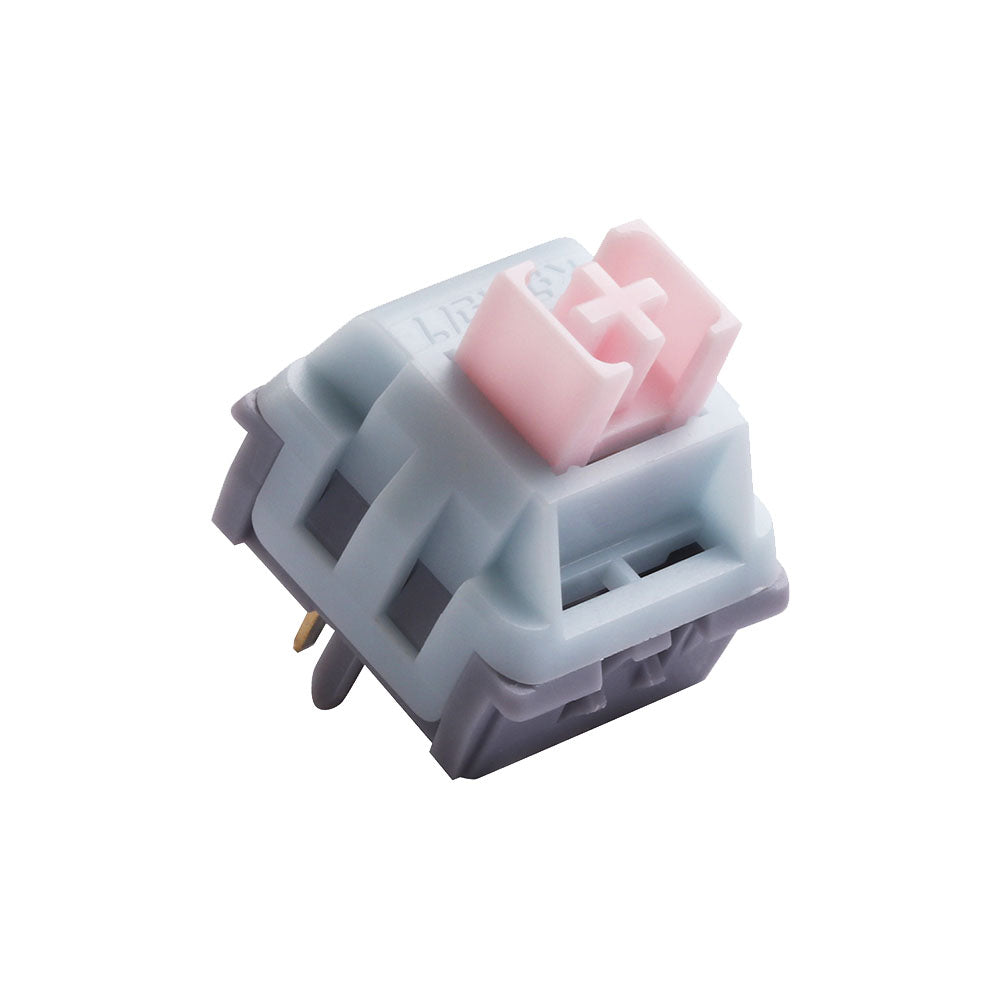

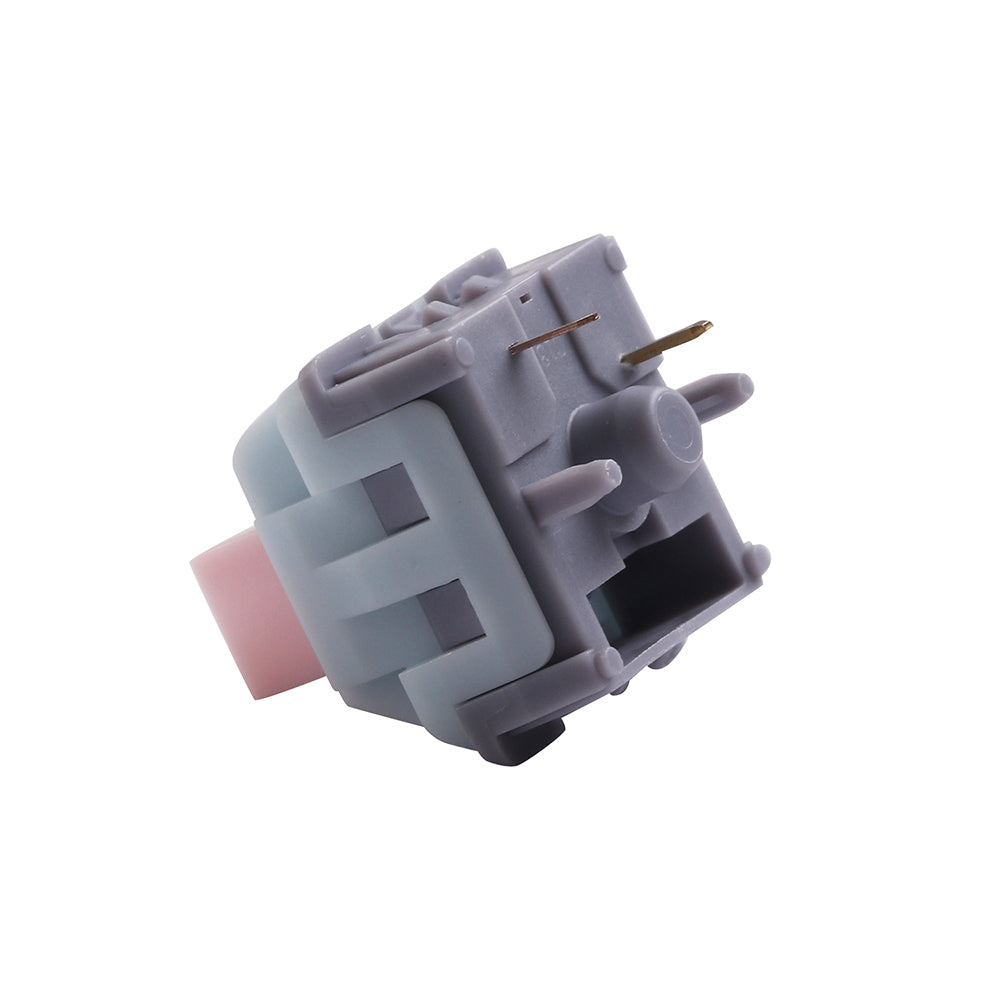

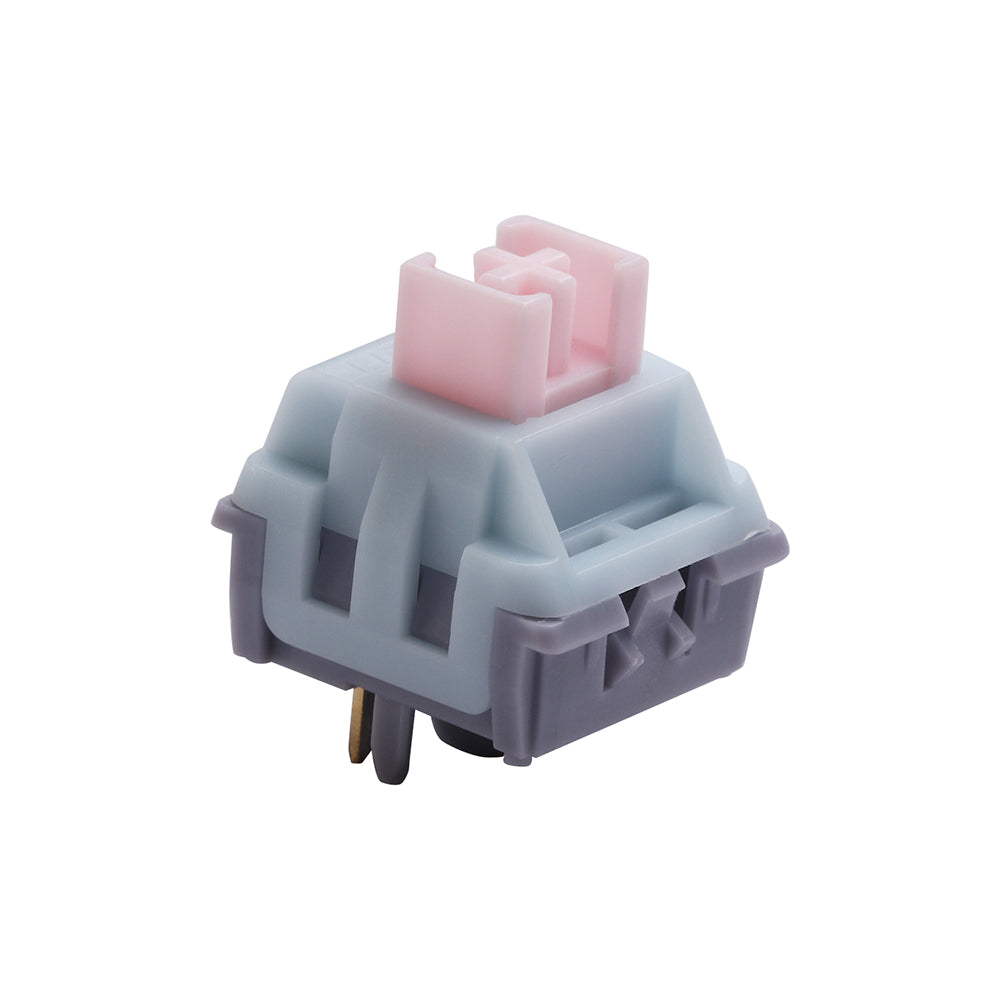

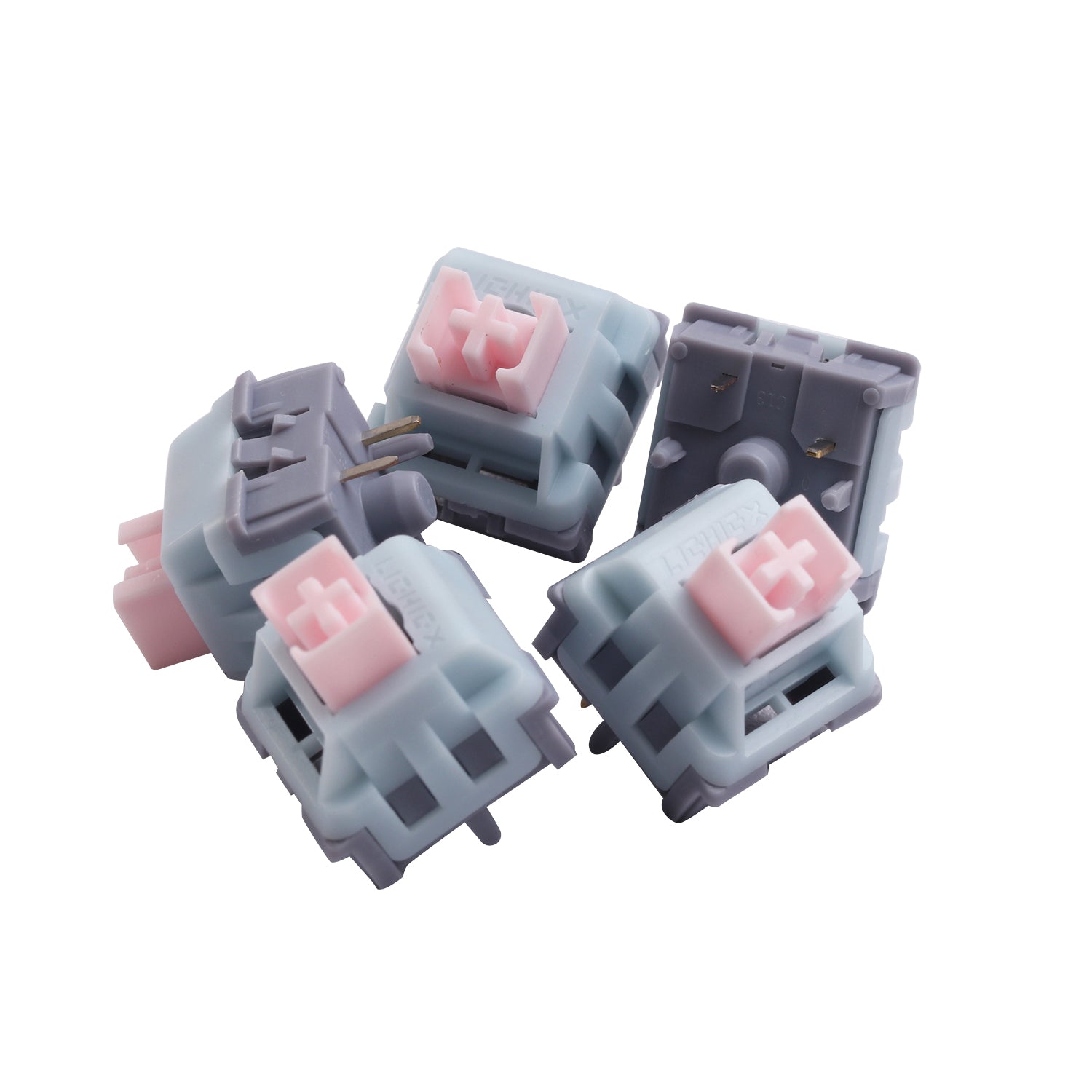

XCJZ HAPE Store LUCY Silent linear switches

All parts sold in packs of 10, Qty 1 = 10 switches.

Based on the HAPE switch, a new shell model and material are upgraded, and the color matching is designed by the NANO laboratory.

• Adopting an exclusive silent solution that is not currently available on the market, it feels smooth and light to press

• The foundry chose Lichi Innovation (LICHICX), which is very, very, very strong in the market.

• Precise lubrication at the factory There will be obvious white semi-fluid grease lubrication on the shrapnel

• Compared with the grease lubrication of the HAPE switch at the bottom of the spring, this time it is replaced with a special sound-absorbing oil lubrication customized in Japan

• The shell of the switch is a large buckle structure on the left and right sides, the upper cover of the bridge plug-in lamp and the bottom shell of the pentagonal patch lamp

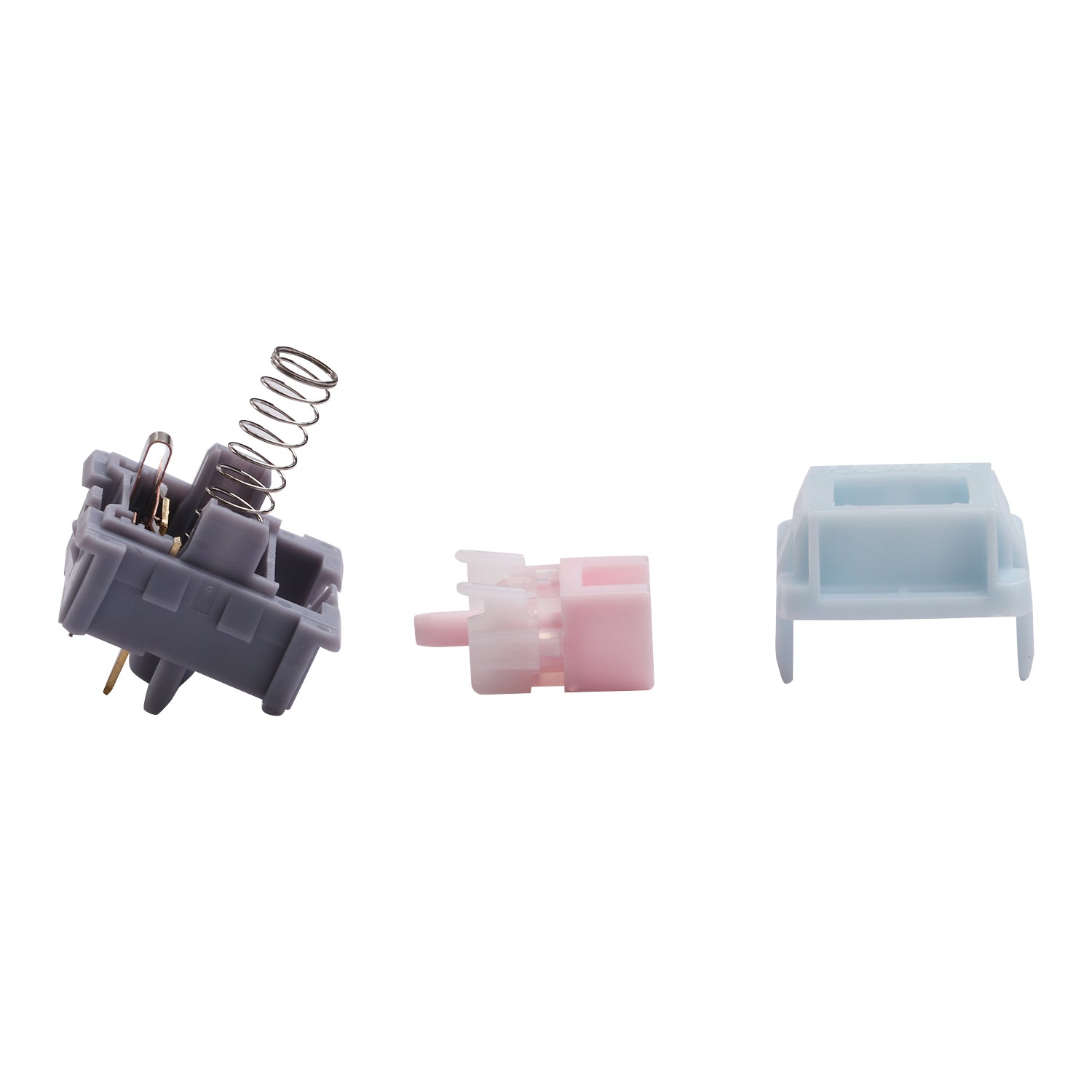

Switch parameters:

 The STEM of the switch adopts: three-color STEM composed of POM STEM main body + customized soft and silent silicone

 The upper cover of the switch is made of: POK polyketone high polymer raw material upper cover

 The bottom shell of the switch adopts: PA bottom shell main body + a large number of GF C5 improved bottom shells

 Trigger stroke: 1.9mm±0.3mm Bottom stroke: 3.7mm±0.3mm

 Using XC55 spring 16mm single-segment spring Exclusive XC high standard production

 Touch pressure: 38g±5g

 Trigger pressure: 44g±5g

 Bottom pressure: 55g±5g
